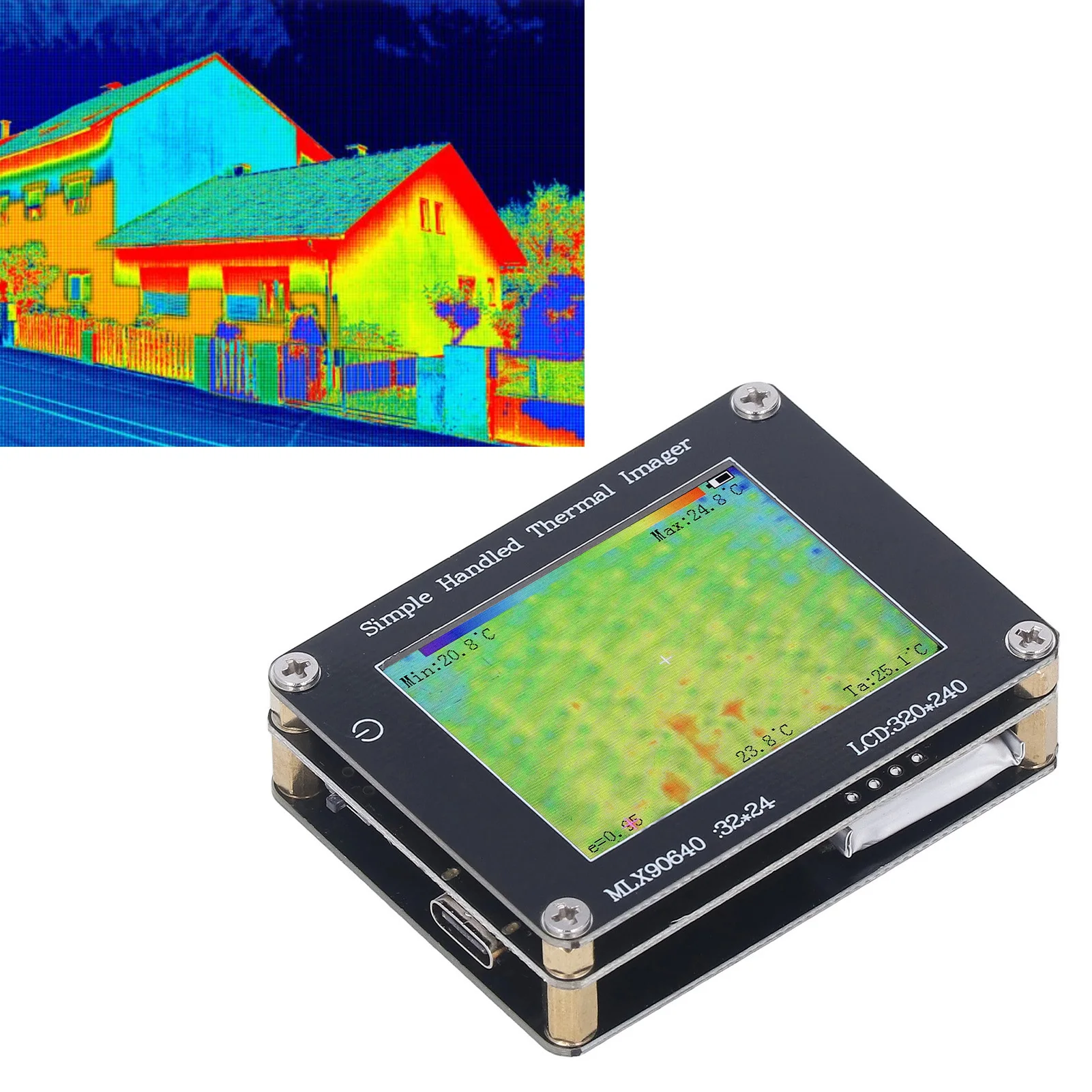

1PC Handheld Thermal Imager 2in Screen -40℃ to 300℃ Multifunctional Infrared Camera for Home Inspection HVAC Electrical Repair

Feature:

1. Working Specification: The measuring range of the infrared camera is from ‑ 40 ℃ to 300 ℃, and it has a 8Hz dynamic refresh rate.
2. Digital Display: Comes with a 2 in screen, the camera can display and track the maximum temperature, minimum temperature and center point temperature.
3. FR4 Epoxy Sheet Shell: Made of premium FR4 epoxy sheet material, the shell of the camera is strong and sturdy, which can well defend internal components, and has a long service life.
4. Easy Carrying: Comes with small size and lightweight, you can easily take this infrared camera with you to help with your work.
5. Data Transmission: With built in for SPI flash chip, the camera can store 100 pictures. You can view and copy image files by connecting a data cable to a computer or a mobile phone.

Specification:

Item Type: Thermal Imager Infrared Camera
Material: Epoxy Resin Board, Printed Circuit Board
Mode: MLX90,640 ESF BAB
Sensor Resolution: 24 x 32 infrared display
LCD Display Resolution: 240 x 320, 2.0in screen
Display Mode: Interpolation simulation display
Measuring Range: – 40 ℃ to 300 ℃
Measurement Accuracy: ± 2 ℃
Refresh Speed: 8HZ
Market Angle: Horizontal 55 ° x Vertical 35 °
USB Emulation USB Function. USB Disk Capacity: 16MB
Picture Catch Function (It needs to be kept for at least 15s)
TYPE C Standard Interface, Built in 3.7V 600mAH Battery (shipped with built in battery)
Read or delete pictures internally without computer assistance
Application:
High accuracy non contact temperature measurement
Security and intrusion detection

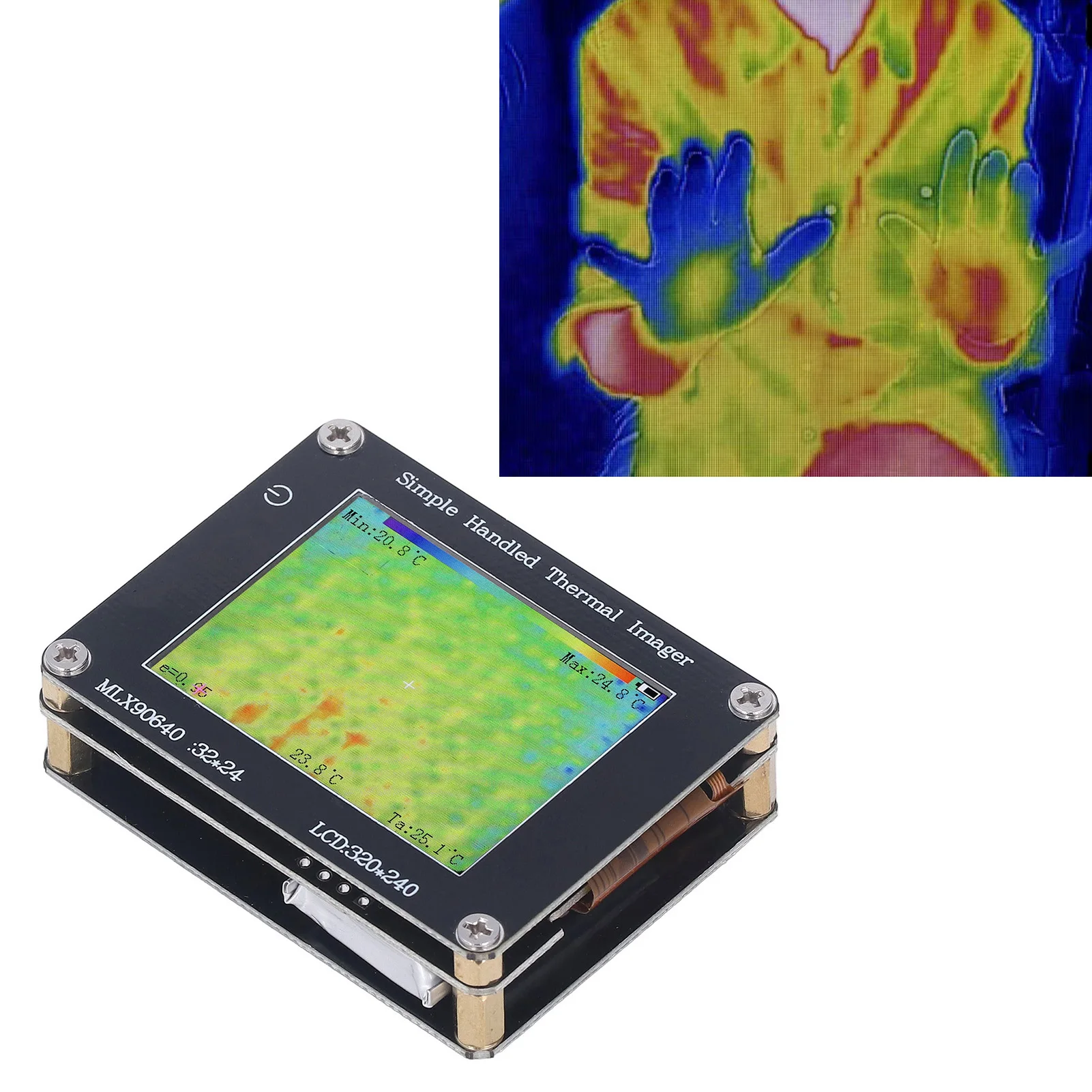

Body temperature detection
Ambient temperature measurement and control of intelligent buildings
Automobile air conditioning control
Microwave oven and oven temperature detection and control
Temperature Monitoring of Industrial Parts
Visual temperature sensor
Side leakage and maintenance of floor heating equipment
Thermal detection of circuit boards and components

How to Use:

It can be used directly after startup

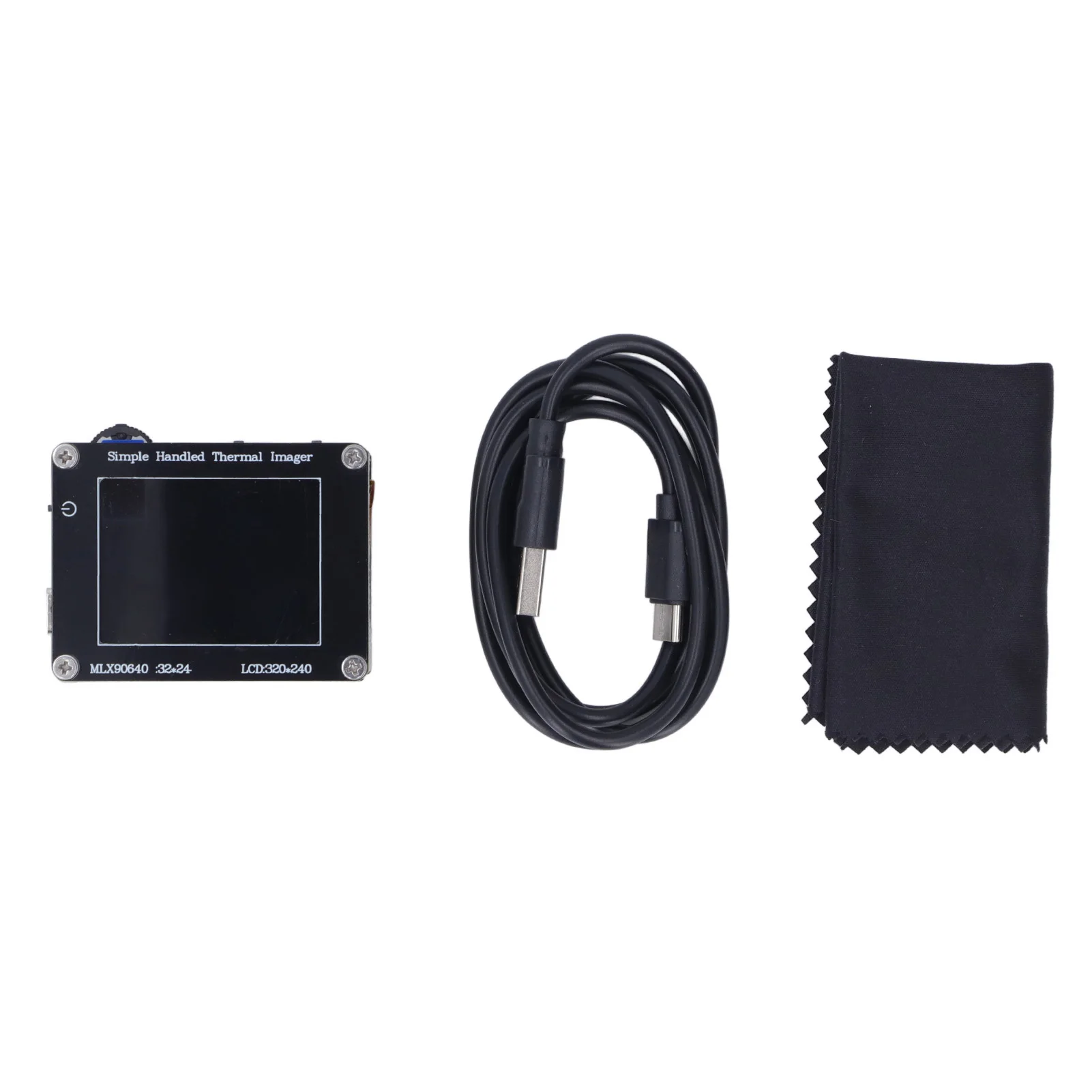

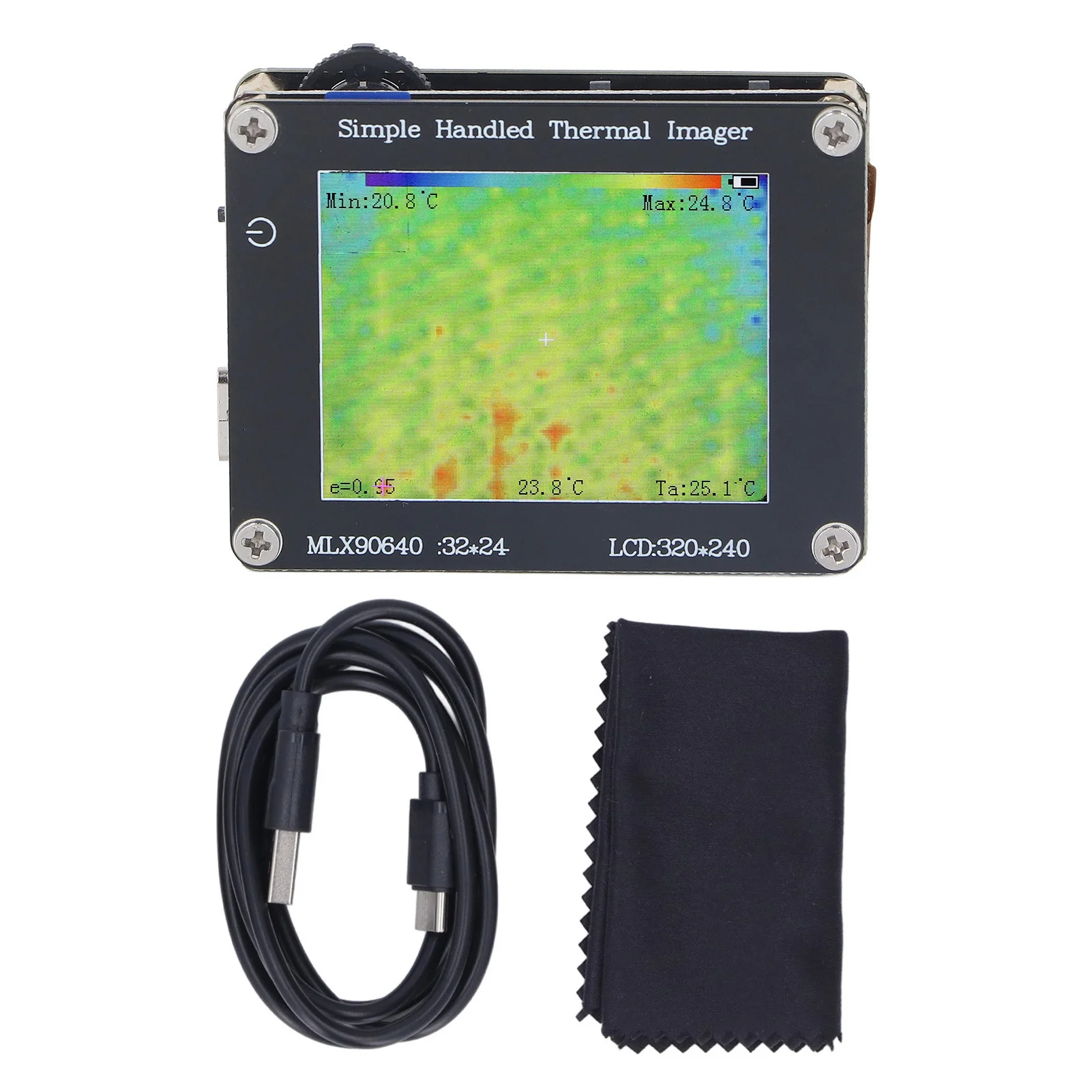

Package List:

1 x Thermal Imager Infrared Camera

1 x Charging Cable

1 x Lens Wiping Cloth
